GUI Reference: Analysis Cloud Active Jobs

The Analysis Cloud Active Jobs page displays information about distributed analysis processes that are currently cloud-associated with launch daemons in the hub's analysis cloud register, broken down according to the analyses that the processes are attached to.

Note: a currently-running analysis process S will not be included in this page if :

S is running in serial mode, or
S is an analysis master, or
S is a build phase process, or
S is attached to a local-requesting analysis, or
S is attached to a different hub.

Important Note: the CodeSonar Web GUI makes extensive use of JavaScript. Make sure JavaScript is enabled in your web browser.

From Analysis Cloud:	click the View breakdown by machine and active analysis link (above the table of analysis machines).
By URL:	http://hub_location/analysis_slaves.html

From Analysis Cloud:

click the View breakdown by machine and active analysis link (above the table of analysis machines).

By URL:

http://hub_location/analysis_slaves.html

Page Access

LAUNCHDGROUP_EXISTS
LAUNCHDGROUP_READ

Page Contents/Functionality

ANALYSIS_EXISTS
LAUNCHD_EXISTS

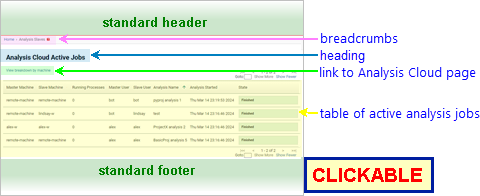

The following annotated screenshot shows the various parts of the Analysis Cloud Active Jobs page.

annotated screenshot: Analysis Cloud Active Jobs page

Standard Header

See GUI Reference: Standard Header.

Breadcrumbs

Home > Analysis Slaves

Page Heading

Analysis Cloud Active Jobs

Link

View breakdown by machine links to the Analysis Cloud page.

Table of analysis jobs

A table showing the currently-running distributed analysis jobs. The table contents will generally change over time: use your browser refresh functionality to update the page as required.

The table has the following features.

Standard pagination controls.
One row for each pair (A, D) where
- A is a currently-running analysis with a remote-requesting analysis master, and
- D is a launch daemon in the hub's analysis cloud register, and
- at least one slave process (analysis slave or daemon slave) for A is or has been cloud-associated with D.
Click a row to navigate to the corresponding Analysis page.

The following columns. Columns displayed by default are marked with an asterisk (*).

Master Machine *	A . Analysis Launch Daemon . Machine
Master Address	A . Analysis Launch Daemon . Address
Slave Machine *	D . Machine
Slave Address	D . Address
Running Processes *	the number of processes in M's current process contribution for D.
Max Processes	D . Process Limit
Master User *	A . Analysis Launch Daemon . System User
Master Hub User	A . Analysis Launch Daemon . Hub User
Slave User *	D . System User
Slave Hub User	D . Hub User
Project ID	A . Analysis Project . Project ID
Project	A . Analysis Project . Name
Project Description	A . Analysis Project . Project Description
Analysis ID	A . Analysis ID
Analysis Name*	A . Analysis
Analysis Description	A . Analysis Description
Parent Analysis ID	A . Parent Analysis ID
Analysis Finished	A . Finished
Warning Count	A . Warning Count
File Count	A . File Count
Most Recent	A . Most Recent?
Dry Run	A . Dry Run?
.prj_files Location	A . Analysis Directory . .prj_files Location
Master Installation	A . Analysis Launch Daemon . Installation
Master Launchd Path	A . Analysis Launch Daemon . LDPath
Master Launchd ID	A . Analysis Launch Daemon . Launch Daemon ID
Master Launchd Key	A . Analysis Launch Daemon . Key
Protected from Auto-Deletion	A . Protected?
State *	A . Analysis State
Slave Installation	D . Installation
Slave Launchd Path	D . Analysis Launch Daemon . LDPath
Slave Launchd ID	D . Analysis Launch Daemon . Launch Daemon ID
Slave Launchd Key	D . Analysis Launch Daemon . Key
Protocol Version	Protocol Version: must be the same for both A. Analysis Launch Daemon and D, otherwise D would not be contributing to A in the first place.
Analysis Started *	A . Started
Status	D . Status
Every built-in and user-defined analysis-granularity metric class present in the analysis. Be default, no metrics are displayed.
Every user-assigned property that is associated with at least one analysis that has taken place on the hub (subject to ANALYSIS_READ permission). If a property value contains a URL, the URL is displayed as a hyperlink. By default, no user-assigned properties are displayed.

Standard Footer

See GUI Reference: Standard Footer.

view the hub's analysis cloud page	Click the View breakdown by machine link (above the table of processes).
view an analysis page	Click a table row that describes one of the slave processes from that analysis.

view the hub's analysis cloud page

Click the View breakdown by machine link (above the table of processes).

view an analysis page

Click a table row that describes one of the slave processes from that analysis.
