GUI Reference: Security Dashboard

The Security Dashboard provides an overview of current hub security settings and provides links to functionality for changing those settings.

Important Note: the CodeSonar Web GUI makes extensive use of JavaScript. Make sure JavaScript is enabled in your web browser.

Navigating to

From Settings: Click the Security Dashboard link in the User Administration tab.
By URL: http://hub_location/security_dashboard.html

Page Properties

Output formats none
Visibility Filter Applied none
RBAC Permissions Needed
Page AccessG_ADMINISTER_USERS

Page Contents

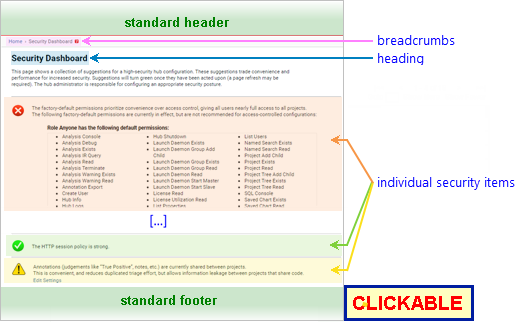

The following annotated screenshot shows the various parts of the Security Dashboard page.

annotated screenshot: Security Dashboard page standard header breadcrumbs heading individual security items standard footer

Standard Header See GUI Reference: Standard Header.
Breadcrumbs Home > Security Dashboard
Where Home links to the GUI Home page.
Page Heading Security suggestions for hub
Individual Security Items See Individual Security Items: Details, below.
Standard Footer See GUI Reference: Standard Footer.

Individual Security Items: Details

The security dashboard presents a series of security items, each related to a particular aspect of hub security. Each item is marked with an icon summarizing its current state.

red cross One or more issues remain to be addressed for this item, and could result in serious security problems.
yellow ! One or more issues remain to be addressed for this item; the resulting security problems are less serious than those with the "red" designation. The recommended changes will improve security but may have other drawbacks.
green checkmark No further action is required for this item.

The individual items are described in the following table.

Item Subject Security Recommendation(s) Action (if needed)
Role-Permissions Built-in roles Anyone and User should not have broad access to the information on the hub.

A new (or newly-upgraded) hub will assign default permissions to these roles: many of these defaults should be removed if security is a concern.

 Click the Restrict Permissions button to remove the direct assignments listed in the tables in this section.

If you have adjusted one or both of these roles to have a parent role, they may still have one or more of the listed permissions through role inheritance. In this situation, you will need to take additional steps to remove the permissions in question: either adjust the role ancestors for Anyone/User, or adjust the permissions assigned to the ancestor. For detailed instructions, see Task: Lock Down A Hub: Additional Steps.
HTTPS The hub should be configured to use HTTPS. Click Change HTTP Settings to navigate to the Configure HTTPS page, then use the Server Certificate Configuration form to set up a TLS hub server certificate. For best security, we recommend purchasing a hub server certificate from a trusted certificate authority.
http:// URLs should not be redirected to the https:// equivalents. Click Edit HTTPS Settings to navigate to the Configure HTTPS page, then select always fail from the menu in the "HTTP Configuration" section and click the Reconfigure HTTPS button.
Database Using TLS Communication between the hub and the hub database should use TLS. Click Edit Settings To Use TLS For Database Communication to navigate to the Settings: HTTP tab, then select the Use TLS for database communication? checkbox and click the Update button.

You will need to restart the hub for this change to take effect.

TLS database communication cannot be set up from satellite hubs, only from primary hubs.
Password Policy Recommended minimums:
  • Minimum Password Length ≥ 12
  • Minimum Password Character Classes ≥ 3
  • PBKDF2 Iterations ≥ 100000
  • No more than 10 authentication attempts per 300 seconds.
 Click Change Password Policy to navigate to the Settings: Password Policy tab, then adjust the settings as needed and click the Update button.
HTTP Session Policy HTTP session timeout ≤ 900 seconds Click Change Session Policy to navigate to the Settings: HTTP tab, then adjust the HTTP Session Timeout as needed and click the Update button.
Annotation Sharing Warning groups should have project scope. Click Edit Settings to navigate to the Settings: Analysis tab, then deselect the Share annotations between projects checkbox and click the Update button.

Navigating From

to Configure HTTPS Click the Change HTTP Settings or Edit HTTPS Settings link.
to Settings (various tabs) Click links in corresponding security items (as noted above).
