Configuration Files

Configuration files contain a number of parameters that you can use to tune how CodeSonar works.

In many cases you will be able to use CodeSonar without modifying any of the default settings.

We also provide guidelines for Performing a More Thorough Analysis at the expense of time or other resources.

Configuration Files in CodeSonar

CodeSonar uses a set of configuration files to control aspects of the project build/analysis process. The following table summarizes the configuration file types.

Configuration File Location Purpose
General Template $CSONAR/codesonar/template.conf Used for every project: loaded every time a compilation unit is built into the CodeSonar project, then again in the analysis phase. Also used to create new general project configuration files when necessary.
General Project
projdir/P.conf
Used for the project built and analyzed at projdir/P.prj: loaded every time a compilation unit is built into the CodeSonar project, then again in the analysis phase. If it doesn't exist when CodeSonar tries to load it, it is created by copying the general template and commenting out all content.
Default Presets
$CSONAR/codesonar/default_presets/
Files with the extension .conf located in $CSONAR/codesonar/default_presets/ are automatically processed immediately after template.conf, as if you had specified them using -conf-file. The files are processed in lexicographical order of filename (as determined by strcmp).

These files can be created manually or copied into the $CSONAR/codesonar/default_presets/ directory from $CSONAR/codesonar/presets/.

The configuration tool also provides an interface for enabling certain popular presets to be used as default presets.

Use the -no-default-presets command line option to run the build or analysis without invoking default presets.
Presets
$CSONAR/codesonar/presets/PresetName.conf
Configuration presets are applied to both the build phase and the analysis phase if applied by the user.
additional Any location path/to/fname Used in the build phase and the analysis phase when -conf-file path/to/fname is specified.

There are no restrictions on fname: it can have any file extension, including no file extension at all.
Compiler Template
$CSONAR/csurf/compiler_confs/C.A.L.S.conf
$CSONAR/csurf/compiler_confs/C.L.S.conf

for all supported compiler C, language L, target address size S combinations. CodeSonar does not ship with any compiler templates whose names include an ABI key A, but users can create such templates if they wish.

 Copied to create new project-compiler configuration files when necessary.
Project-Compiler
projdir/P.C.L.S.conf
projdir/P.C.A.L.S.conf

for all compiler C, language L, target address size S combinations used in the project built and analyzed at projdir/P.prj. For compiler mappings (via COMPILER_MODELS) that include an ABI key, the corresponding project-compiler configuration file name will include the key A.

 Used in the build phase for the project built and analyzed at projdir/P.prj: loaded every time a compilation unit with that compiler/language/size is built into the CodeSonar project. If it doesn't exist when CodeSonar tries to load it, it is created by copying a compiler configuration file template. The loading and creation are resolved as follows.
  • Is an ABI key A specified for C with COMPILER_MODELS?
    • YES: Does
      projdir/P.C.A.L.S.conf
      exist?
      • YES: Load
        projdir/P.C.A.L.S.conf
      • NO: Search $CSONAR/csurf/compiler_confs/ for the following, in order of priority.
        1. C.A.L.S.conf

        2. C.L.S.conf

        3. m.L.S.conf
          where m is the compiler model used to model the compilation.
        4. m.L.S.conf

        5. unknown.A.L.S.conf

        6. unknown.L.S.conf
        Are any of those candidate templates present?
        • YES: Copy the highest-priority available candidate template to
          projdir/P.C.A.L.S.conf
          then load
          projdir/P.C.A.L.S.conf
        • NO: No project-compiler configuration file will be generated or used for this compilation.
    • NO: Does
      projdir/P.C.L.S.conf
      exist?
      • YES: Load
        projdir/P.C.L.S.conf
      • NO: Search $CSONAR/csurf/compiler_confs/ for the following, in order of priority.
        1. C.L.S.conf

        2. m.L.S.conf
          where m is the compiler model used to model the compilation.
        3. unknown.L.S.conf
        Are any of those candidate templates present?
        • YES: Copy the highest-priority available candidate template to
          projdir/P.C.L.S.conf
          then load
          projdir/P.C.L.S.conf
        • NO: No project-compiler configuration file will be generated or used for this compilation.

Configuration File Loading

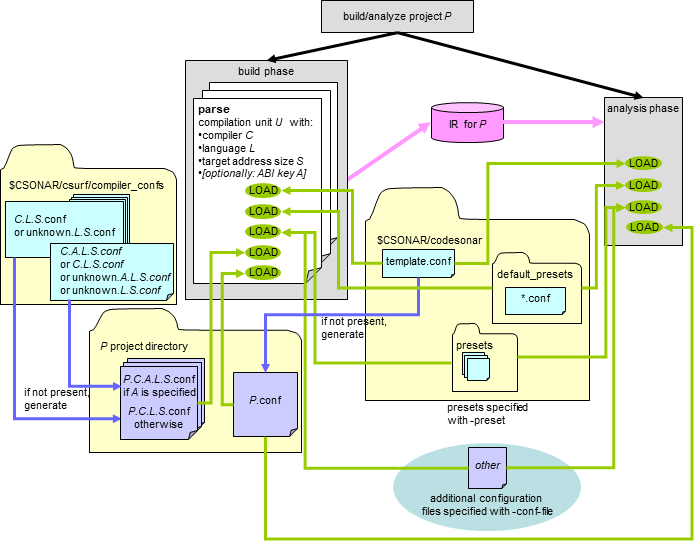

Suppose we are building and analyzing a project called P. Then configuration files are loaded as shown in the following diagram.

Diagram showing load order of configuration files, as described below

Build Phase For each compilation unit U it recognizes in the observed command, CodeSonar loads configuration files in the following order before building U into the CodeSonar project.
  1. General template configuration file template.conf.
  2. Default presets.
  3. Any user-specified configuration files: with ordering determined by argument position on the command line.
  4. Project-compiler configuration file P.C.L.S.conf or P.C.A.L.S.conf where
    • L is the language of U,
    • C is the compiler used to compile U,
    • S is the target address size for the compilation, and
    • A is the ABI key associated with U (through a COMPILER_MODELS rule), if any. If there is no such A, the P.C.L.S.conf naming scheme is used.
      (An ABI key specified with the --cs_user_abi_key front end option will not be reflected in the project-compiler configuration file name.)
    If the project-compiler configuration file doesn't exist, CodeSonar generates it as described above.
  5. General project configuration file P.conf. If P.conf doesn't exist, CodeSonar generates it from $CSONAR/codesonar/template.conf.
Analysis Phase The analysis phase loads configuration files in the following order.
  1. General template configuration file template.conf.
  2. Default presets.
  3. Any user-specified configuration files: with ordering determined by argument position on the command line.
  4. General project configuration file P.conf (if it doesn't exist, CodeSonar generates it).
(Note that the analysis phase does not load any compiler-project configuration files.)

Understanding and Editing Configuration Files

All configuration files contain internal documentation covering file format, usage guidelines, and the parameters used in the files.

The documentation for individual parameters has been incorporated into this manual:

Any configuration file can be edited directly in your text editor: the configuration file header contains a thorough explanation of the file format and usage guidelines. In addition, you can edit the general project configuration file by clicking the Configuration File "Change..." button in the second screen of the Windows Build Wizard.

Which configuration file(s) should you edit?

If you edit... ..it will affect...
general template
$CSONAR/codesonar/template.conf 		Future builds/analyses of all projects.
and
All subsequently-generated general project configuration files P.conf.
general project configuration file
projdir/P.conf
Future builds/analyses of projdir/P.prj.
compiler configuration file templates
$CSONAR/csurf/compiler_confs/C.L.S.conf
or
$CSONAR/csurf/compiler_confs/C.A.L.S.conf
All subsequently-generated project-compiler configuration files for which the template is the highest-priority available candidate (see above for a description of the template selection mechanism).
project-compiler configuration file
projdir/P.C.L.S.conf
For future builds of projdir/P.prj: any compilations with compiler C, language L, and target size S, where there is no COMPILER_MODELS rule associating an ABI key with the compiler.
project-compiler configuration file
projdir/P.C.A.L.S.conf
For future builds of projdir/P.prj: any compilations with compiler C, language L, and target size S, where ABI key A is associated with the compiler through a COMPILER_MODELS rule.
preset
$CSONAR/codesonar/presets/PresetName.conf
For any project, any future build/analysis to which the PresetName preset is applied.
additional configuration file
Any location path/to/fname		 For any project, any future build/analysis for which -conf-file path/to/fname is specified.

Creating/Reverting a Configuration File

Use the codesonar create-conf command to create new project configuration files or revert existing ones to their initial state.

codesonar create-conf pfilesname [compilername]

This command creates a new general project configuration file for pfilesname by copying the general template to a file called pfilesname.conf in your working directory, commenting out all content.

If compilername is specified, it also creates new project-compiler configuration files by copying all compiler configuration file templates with names of the form compilername.L.S.conf to the corresponding pfilesname.compilername.L.S.conf.

Upgrading Configuration Files

To update your configuration files when you upgrade CodeSonar, see Upgrading Configuration Files.

Multiple Definitions

If a configuration file defines a parameter that has already been defined (in a previously-read file or earlier in the current file), CodeSonar processes it as follows.

Changing Parameter Settings

You can change a parameter setting in multiple ways.

Between two base analyses of the same project. You can change all parameter settings.

Between incremental parent and incremental child analyses. You can change most parameter settings. Parameters whose settings should not be changed for incremental analyses are tagged as such in documentation and listed in the configuration parameter index.

Between two codesonar build invocations, or between codesonar build and codesonar analyze. You may need to change settings for compiler-dependent configuration file parameters, and for compiler-independent parameters that affect parsing: for example, you may need to change CFLAGS_APPEND/CFLAGS_PREPEND settings to specify different -D or -I flags, or adjust various parallelism settings to account for changes in machine availability. However, do not change settings for parameters that control information used by the analysis phase. Parameters whose settings should not be changed between stages of a single build/analysis are tagged as such in documentation and listed in the configuration parameter index.
If you are using any of the presets shipped with CodeSonar, do not change the set of presets or the order in which they are specified. This includes default presets as well as presets explicitly included with -preset or loaded as extra configuration files with -conf-file.

User-Defined Variables

You can define and use your own variables in configuration files. For example:

set MYVAR = aou
set MYVAR_PLUS = ${MYVAR}ee

# replaces aou with aouee in source code
SOURCE_PATTERN = s/${MYVAR}/${MYVAR_PLUS}/

set MYVAR += eeiou
# replaces aoueeiou with aouee in source code
SOURCE_PATTERN = s/${MYVAR}/${MYVAR_PLUS}/

Less-elegant uses of these variables are also possible. For example, consider the effect of changing the definition of TOGGLE from <nothing> to # in the following:

set TOGGLE =
${TOGGLE} SOURCE_PATTERN = s/abc/def/
${TOGGLE} SOURCE_PATTERN = s/efg/xyz/

More Information

The following sections contain further information about configuration files.

Upgrading Configuration Files Describes how to update your configuration files when you upgrade CodeSonar
Index: Compiler-Independent Configuration File Parameters An alphabetical list of the parameters in the general template and general project configuration files.
Compiler-Independent Configuration File Parameters Full documentation for every parameter in the general template, in order of appearance.
Index: Compiler-Dependent Configuration File Parameters An alphabetical list of the parameters in the compiler template and project-compiler configuration files.
Compiler-Dependent Configuration File Parameters Full documentation for every parameter in a compiler template, in order of appearance.
