This kind of chart allows you to see at a glance which projects on the hub have the most warnings still active, and how those warnings break down by class.

See Charts and Chart Tables: Permissions for details of the permissions that apply to charts and charting operations.

screenshot fragment: graph of warnings per project, grouped by class

If the CodeSonar Web GUI is not already open, open it now.

If you have just opened the GUI, the home page will already be displayed. Otherwise, click the CodeSonar logo in the GUI page header to navigate to the home page.

Click the Charts and Tables section header to expand that section, then click the chart link in the warnings per project line.

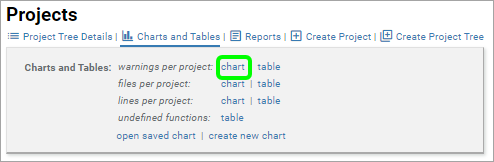

Screenshot fragment: shortcut link for chart of warnings per project

A chart page will open, with a chart that looks (something) like this:

Screenshot fragment: chart of projects vs warnings counts

Choose the active Visible Warnings setting so that the chart displays only active warnings.

There are a number of things you can do with this chart, including:

Hover over a bar to see the project name and exact warning count.
Click on a bar to view the corresponding warning search results: the active warnings for the project whose bar you clicked.
Change the Visible Warnings setting and see how the chart changes.

If you experimented with any of the options in the previous step, make sure that you are viewing your chart with Visible Warnings set to active before proceeding.

Select Change groups from the chart Edit menu.

screenshot fragment: menu selection

The charting wizard will open with the groups tab displayed.

Click add group.

Select Class from the Group By menu.

Select Stacks from the Display As list. The wizard window should look like the following (the contents of the preview screen will depend on your data).

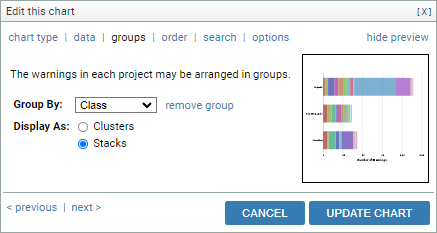

screenshot: chart wizard after specified changes

Click Update Chart.

Your chart will change to the format shown at the top of this section.

There are a number of things you can do with this chart, including:

Hover over a bar segment to see the project name, warning class, and exact warning count.
Click on a bar segment to view the corresponding warning search results: the active warnings of the appropriate class for the project whose bar you clicked.
Change the Visible Warnings setting and see how the chart changes.
